石塑电梯门套的安装方法

2018-05-07 15:58:47 文章来源:www.jnhaohui.com

石塑电梯门套装置 :假如是传统方式——现场制造的门套,是由现场装饰工人间接用钉子固定于门洞墙 门套体;而假如是成套门商品的门套装置(如今越来越多的用户均采用成套门商品),则要思索两个成绩:

Stone plastic elevator door sleeve device: if it is the traditional way - the field - made doorcase is fixed by the field decoration workers indirectly by the nail on the doorway body; and if the door set of the complete door commodity (now more and more users are using a complete door commodity), we should think about two achievements:

一石塑电梯门套是相应的成套门商品,其门套的技术构造能否契合作爲成套门商品所须具有的结实性、精准性以及波动性这三大技术特征;

The one stone plastic elevator door is the corresponding complete door commodity, and the technical structure of its door sleeve can fit the three technical features of the set door commodity, which must have the firmness, the precision and the volatility.

二装置者关于装置现场的事前勘测与装置时的工艺流程的标准性(如采用发泡剂等方式关于电梯门套结实性、精准性和日后运用的波动性一切能够发生的影响)。

Two the standardization of the process flow during the site survey and installation of the device (such as the effects of blowing agent on the sturdy, precision, and the volatility of the post - day application).

1、依据设计图纸反省门的规格、开启方向、相关配件等。

1、 according to the design drawings, reflect the door specifications, opening direction, related accessories and so on.

2、用卷尺量门洞的高与宽。门的规范高宽尺寸是200cm×80cm;卫生间的门高宽是200cm×70cm。尺寸如有出入要及时纠正。

2. Use a tape measure to measure the height and width of the hole. The width and height of the door is 200cm * 80cm, and the width of the bathroom door is 200cm * 70cm. If the size is in or out, it should be corrected in time.

3、测量地位线,确定门框的地位,用墨斗弹拉出垂直线,一侧门洞两条垂直线。

3、measure the status line, determine the status of the doorframe, use the ink bomb to pull out the vertical line, one side door and two vertical lines.

4、在垂直线上用冲击钻打眼,孔眼与孔眼之间的间隔约爲30cm,一侧门两排共10个孔眼。冲击钻的钻头应爲12mm,所钻孔眼深度约爲6cm

4. Drill holes on the vertical line with a percussion drill. The interval between the hole and the hole is about 30cm, and there are 10 holes in the two row of the side door. The drill bit for the percussion drill should be 12mm, and the depth of the drilling hole is about 6cm.

5、将小木楔用铁锤逐一钉入孔眼,以便固定门框板。小木楔的体积大小爲5cm×1.5cm×1.5cm,以落叶松制造的爲好,由于落叶松的木质构造紧,不容易松动。

5. Hammer the small wooden wedge into the eyelet one by one, so that the door frame can be fixed. The size of the small wedge is 5cm * 1.5cm * 1.5cm, which is made of larch. Because the wood structure of larch is tight, it is not easy to loose.

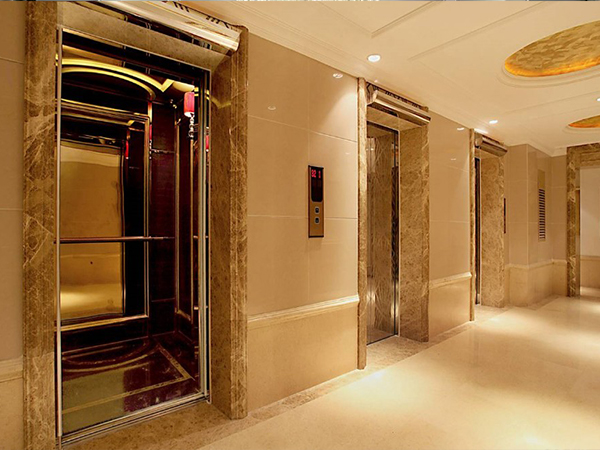

电梯门套

6、开料制造门框。左右做两侧门框龙骨的木工板尺寸爲200cm× 3cm×8cm,门框顶龙骨的木工板尺寸爲80cm×3cm×8cm。将高密度九厘板涂胶粘在龙骨上,再用汽枪钉固定。

6. Open the door frame. The size of the woodworking board with two sides of the doorframe keel is about 200cm * 3cm * 8cm, and the size of the woodwork board of the door frame keel is 80cm * 3cm * 8cm. Glue the high density nine - board to the keel and fix it with a steam gun.

7、将制造好的三条门框按门的外形衔接起来,并且用大钉子在接合处固定。

7.connect the three door frames that are made up according to the shape of the door, and fix them with the big nails at the joint.

8、用刨子将衔接好的门框外表修平整,修整边角,棱角清楚。

8. Use the plane to smooth the appearance of the good doorframe, trim the edges and corners, and make the edges clear.

9、将门框放到门洞上,按墙面的程度线爲准,门框下拿木头或许砖头垫起,调理门框的高度。上面预留5cm埋在地板的龙骨中。

9. Put the doorframe on the doorway, according to the degree line of the wall, take wood or brick under the doorframe, and adjust the height of the doorframe. The 5cm is buried in the floor of the keel

10、在门框的下面钉一个钉子,把线垂挂上,经过线垂来调整门框的垂直,一边权衡一边用麻花钉将门框固定在门洞上。

10. Nail a nail under the doorframe, hang the line vertically, adjust the vertical of the door frame through the line droop, and balance the door frame on the door with the twist nail on the other side.

11、制造门脸的线条。门脸可以是现成买的,也可以是施工人员依照图纸做出来的。制造完成后,就把门脸固定到门框上六,这样门套就根本完成了。

11, make the line of the face. The door face can be bought on the spot, or it can be made by the construction personnel according to the drawings. After the manufacture is completed, the door face is fixed to six of the doorframe, so that the doorway is completely completed.

12、把门放到门套上比划好,确定合页在门套上的详细地位,再按合页的厚度切出口径。也切出锁套的口径。将门装置到门套上,合页用锣丝刀将锣丝钉拧紧。留意门与石塑电梯门套的间隙不得大于1.5mm,以顺畅开关门爲准。

12, put the door on the door sleeve to make a good decision, determine the detailed position of the hinge on the door cover, and then cut the caliber according to the thickness of the hinge. The bore of the lock is also cut out. The door is mounted on the door sleeve, and the hinge is tightened with a wire knife. Note that the clearance between door and stone elevator door can not be greater than 1.5mm, with a smooth opening and closing door as the criterion.
